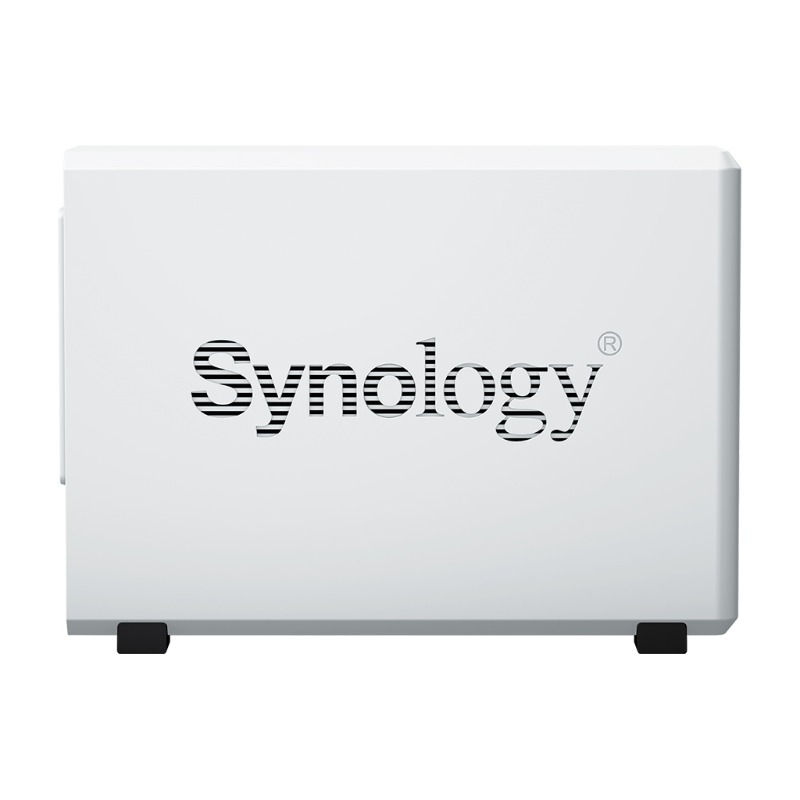

    main product photo

    Synology DS223j DiskStation 2-Bay NAS

    Special Price $347.00 Regular Price $399.00
    SKU:401809
    MPN:DS223J Link
    Manufacturer:https://www.synology.com
    Brand: Synology
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    CPU
    		 CPU Model Realtek RTD1619B
      CPU Quantity 1
      CPU Architecture 64-bit
      CPU Frequency 4-core 1.7 GHz
      Hardware Encryption Engine
    Memory
    		 System Memory 1 GB DDR4 non-ECC
      Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
    Storage
    		 Drive Bays 2
      Compatible Drive Type* (See all supported drives)
    • 3.5" SATA HDD
    • 2.5" SATA SSD (with optional 2.5" Disk Holder)
      Hot Swappable Drive* -
      Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
    External Ports
    		 RJ-45 1GbE LAN Port* 1
      USB 3.2 Gen 1 Port* 2
      Notes
    • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
    • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
    File System
    		 Internal Drives
    • Btrfs
    • EXT4
      External Drives
    • Btrfs
    • EXT4
    • EXT3
    • FAT
    • NTFS
    • HFS+
    • exFAT
      Notes Btrfs file system is available from DSM 7.2-64570.
    Appearance
    		 Size (Height x Width x Depth) 165 mm x 100 mm x 225.5 mm
      Weight 0.88 kg
    Others
    		 System Fan 92 mm x 92 mm x 1 pcs
      Fan Speed Mode
    • Full-Speed Mode
    • Cool Mode
    • Quiet Mode
    • Low-power Mode
      Brightness Adjustable Front LED Indicators
      Power Recovery
      Noise Level* 18.2 dB(A)
      Scheduled Power On / Off
      Wake on LAN / WAN
      Power Supply Unit / Adapter 60 W
      AC Input Power Voltage 100V to 240V AC
      Power Frequency 50/60 Hz, Single Phase
      Power Consumption 16.31 W (Access)
    4 W (HDD Hibernation)
      British Thermal Unit 55.62 BTU/hr (Access)
    13.64 BTU/hr (HDD Hibernation)
      Notes
    • For more information on how power consumption is measured, refer to this article.
    • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
    Temperature
    		 Operating Temperature 0°C to 40°C (32°F to 104°F)
      Storage Temperature -20°C to 60°C (-5°F to 140°F)
      Relative Humidity 5% to 95% RH
    Certification
    • FCC
    • CE
    • BSMI
    • VCCI
    • RCM
    • UKCA
    • EAC
    • CCC
    • KC
    Warranty
    		 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
      Notes
    • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
    • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
    Environment
    		 RoHS Compliant
    Packaging Content
    • Main Unit X 1
    • Accessory Pack X 1
    • AC Power Adapter X 1
    • AC Power Cord X 1
    • RJ-45 LAN Cable X 1
    • Quick Installation Guide X 1
    Optional Accessories
    • 3.5" SATA HDD: HAT3300
    • Surveillance Device License Pack
    • Disk Holder: Type C
