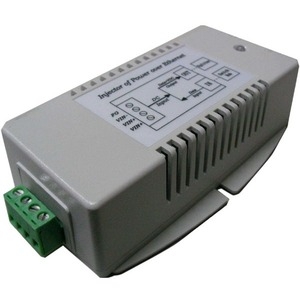

Tycon Power PoE Injector 1Gigabit 36-72VDC IN 56VDC OUT 70W Hi Power TP-DCDC-4856G-VHP

$230.00
SKU:398099
MPN:TP-DCDC-4856G-VHP Link
Manufacturer:https://www.tyconsystems.com
Brand: Cambium Networks
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

Features
• Remote power or backup power for Ubiquiti airFiber antennas
• Input Voltage +/- 36-72VDC; Output 56VDC Passive POE
• Isolated DC input
• Integrated POE Inserter
• High Power 70W
• Short Circuit, Over Current and Over Voltage Protection
• Industrial Temperature Operation
• Removable Wire Terminal Input for up to 12AWG wires
• I.T.E. Power Supply, UL Listed

The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber antennas and also various outdoor PTZ security cameras. The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.

They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.

General Information

Manufacturer
Tycon Power Systems
Manufacturer Part Number
TP-DCDC-4856G-VHP
Manufacturer Website Address
http://www.tyconpower.com
Brand Name
Tycon Power
Product Name
(TP-DCDC-4856G-VHP) 36-72VDC In, 56VDC 70W Passive POE Out DCDC
Marketing Information
The TP-DCDC-4856G-VHP is a very high power DC to DC converter / passive POE inserter designed for Ubiquiti airFiber™ antennas and also various outdoor PTZ security cameras.

The DCDC converter supplies 70W passive POE power on all 8 Ethernet wires.

They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Product Type
PoE Injector

Technical Information

Protection Type
Short Circuit

Over Current

Over Voltage

Power Description

Maximum Output Voltage
56 V DC
Maximum Output Power
70 W

Interfaces/Ports

Input Ports
1 Gigabit Ethernet
Output Ports
1 Gigabit Ethernet

Physical Characteristics

Form Factor
External
Height
38 mm
Width
75 mm
Depth
125 mm

Miscellaneous

Compatibility
  • Ubiquiti airFiber Antennas
  • Axis Q60 Series PTZ Cameras
