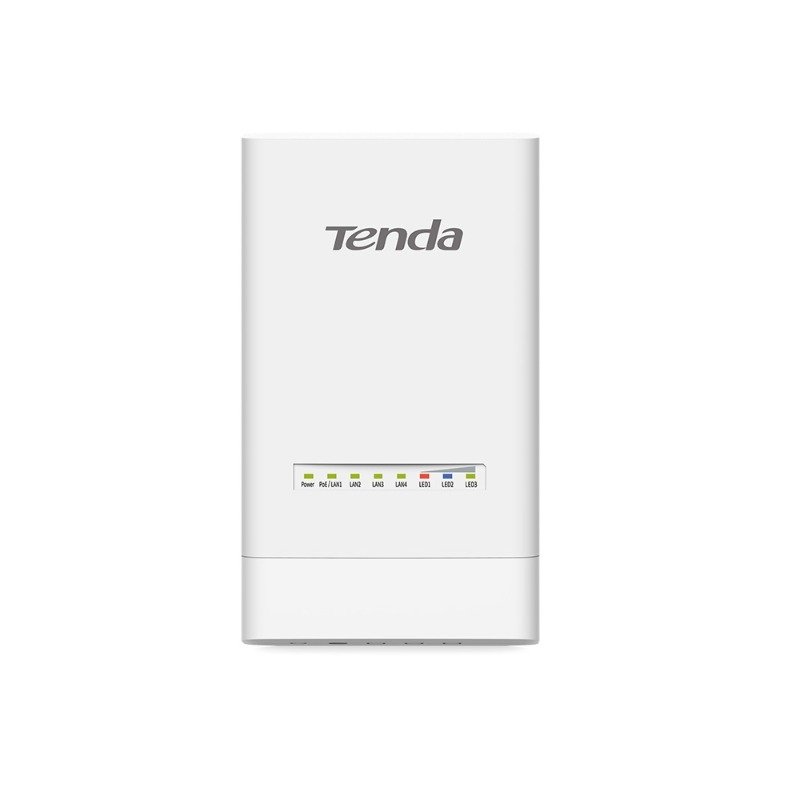

    Tenda (OS3) 5km 5GHz 867Mbps Point to Point Outdoor CPE

    $98.00
    SKU:394269
    MPN:OS3 Link
    Manufacturer:https://www.tendacn.com
    Brand: Tenda
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    Product Information
    Model
    OS3
    Dimension
    193*109*61mm
    Deployment
    Pole/Wall Mount
    Application Scenarios
    PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
    Hardware
    Frequency Range
    5GHz
    Compliant Standards
    IEEE 802.11a/n/ac
    Maximum Wireless Rate
    867Mbps
    Interfaces
    4*10/100 LAN Port
    Antenna
    -
    Antennas Gain
    12dbi
    Antenna Beamwidth
    Horizontal: 30° Vertical: 30° Elevation: 30°
    GND
    -
    Reset Button
    1
    Power Consumption
    4.7W
    Waterproof Level
    IP65
    LED Indicator
    Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3
    Power Method
    12V 1A Passive PoE
    12V 1A DC
    Lightning Protection
    6000V
    Passive PoE
    Passive power over ethernet via PoE/LAN (+4,5pins -7,8pins ) up to 60 meters
    Voltage range: 9-13V DC
    Reception Sensitivity
    11a 6Mbps -92dBm±1.5dBm
    11n MCS7 HT20 -72dBm±1.5dBm
    11ac MCS9 HT80 -64dBm±1.5dBm
    Software
    TDMA
    -
    Operating mode
    AP/Station/WISP/P2MP/WDS Repeater/Router
    Enable/Disable Wireless Radio
    Support
    SSID Hidden
    Support
    Wireless Client isolation
    Support
    SSID Isolation
    Support
    Channel Bandwidth
    20/40/80MHz
    Channel Shift
    -
    Wireless Access Control
    Support
    Weak Signal Client Limitation
    Support
    Transmission Power
    Adjustable power by 1dBm
    WMM Capable
    Support
    APSD Capable
    Support
    Wireless Security
    64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
    Transparent Bridge
    Support
    VLAN Tagging for SSID
    Support
    DHCP Server
    Support
    VPN Pass-Through
    PPTP,L2TP
    Remote Web access
    Support
    Schedule Reboot
    Support
    Page Timeout
    Support
    Ping Watchdog
    Support
    Dyndns
    noip, dyndns.org
    Network Diagnoses
    Ping, Traceroute, Signal Scan
    Time and Date Setting
    Support
    Firmware upgrade
    Support
    Backup/Restore Configuration
    Support
    Username Managerment
    Support
    System Logs
    Support
    Managed By Controller
    PC Software -- CPE Assistant
    Others
    Package Contents
    1*5GHz 12dBi 11AC 867Mbps Outdoor CPE
    1*Power Adapter
    1*PoE Injector
    1*Quick Installation Guide
    Operation Temperature
    -30℃ ~ 60℃
    Storage Temperature
    -40℃ ~ 70℃
    Operating Humidity
    10%~90% non-condensing
    Storage Humidity
    10%~90% non-condensing
    Default login IP
    192.168.2.1
    Default Login Username
    admin
    Default Login Password
    admin
    Certification
    FCC/CE/RoHS
