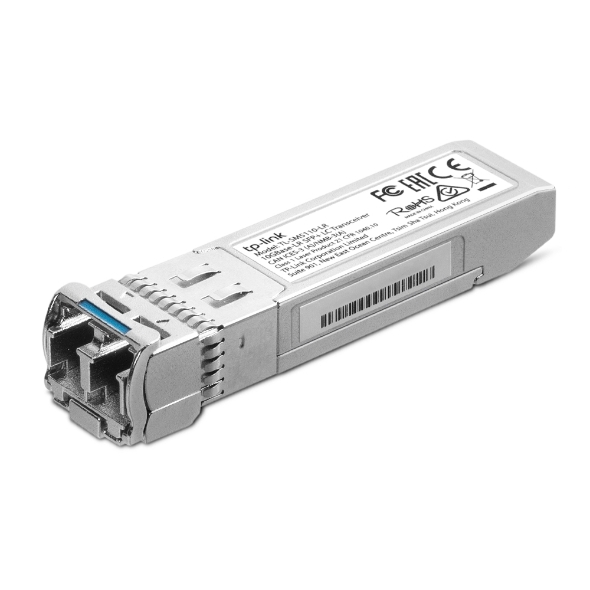

TP-Link Tl-Sm5110-Lr 10Gbase-LR Sfp+ Lc Transceiver SM5110-LR
$60.00
| SKU: | 393645 |
|---|---|
| MPN: | SM5110-LR Link |
| Manufacturer: | https://www.tplink.com |
| Brand: | Tp-link |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
TP-Link TL-SM5110-LR 10Gbase-LR SFP+ LC Transceiver
Specifications
▼
| SKU | SM5110-LR |
|---|---|
| Brand | TP-Link (Omada) |
| Model | TL-SM5110-LR (SM5110-LR) |
| Notes | Do not include seller, pricing, or availability information. Values consolidated from multiple vendor specifications; model and part-number variants provided where referenced by sources. |
| Weight | 0.64 oz |
| Features | Hot-pluggable Digital Diagnostic Monitoring (DDM) SFP+ MSA compliant Supports 10 Gigabit Ethernet and lower rates (module chipset supports 1.25–10.31 Gbps) Commercial temperature range / standard networking environments |
| Fiber Type | Single-mode (9/125 µm) |
| Description | The TP-Link TL-SM5110-LR (SM5110-LR) is a hot-pluggable 10GBASE-LR SFP+ single-mode optical transceiver designed for 10 Gigabit Ethernet links up to 10 km over 9/125 µm fiber. It uses a 1310 nm DFB transmitter and LC duplex interface, supports full-duplex 10G operation (up to 10.3125 Gbps), and provides Digital Diagnostic Monitoring (DDM). The module is SFP+ MSA compliant and interoperable with standard 10G SFP+ ports (compatible with TP-Link JetStream and Omada switches such as TL-SG3428X / TL-SG3428XMP). Packaged with the module and an installation guide, it meets industry standards (IEEE 802.3ae, SFF-8472) and regulatory certifications (CE, FCC, RoHS). |
| Duplex Mode | Full Duplex |
| Form Factor | SFP+ (Hot-pluggable) |
| Manufacturer | TP-Link Technologies Co., Ltd. |
| Part Numbers | TL-SM5110-LR SM5110-LR TL-SM5110-LR-HPC SM5110-LR(UN) |
| Power Supply | 3.3V |
| Product Type | SFP+ Transceiver |
| Max Data Rate | Up to 10.3125 Gbps (10G Ethernet) |
| Product Title | TP-Link TL-SM5110-LR / SM5110-LR 10GBASE-LR SFP+ LC Transceiver (1310 nm, 10 km, DDM) |
| Connector Type | LC Duplex |
| Wavelength (nm) | 1310 |
| Channels / Ports | 1 (LC duplex) |
| Maximum Distance | Up to 10 km |
| Package Contents | 10G SFP+ Module TL-SM5110-LR (SM5110-LR) Installation Guide |
| Storage Humidity | 5–90% RH, non-condensing |
| Country of Origin | China |
| Operating Humidity | 10–90% RH, non-condensing |
| Compatibility Notes | Compatible with switches and devices that accept 10G SFP+ modules and SFP+ MSA-compliant transceivers; tested for interoperability with TP-Link JetStream / Omada switches (e.g., TL-SG3428X, TL-SG3428XMP / SG3428X). |
| SFP+ MSA Compliance | Yes (SFP+ MSA / SFF-8432) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Transceiver Standard | 10GBASE-LR |
| Operating Temperature | 0 to 70 °C (32 to 158 °F) |
| Regulatory Compliance | CE FCC RoHS |
| Dimensions (W x D x H) | 2.2 x 0.5 x 0.4 in (56.7 x 13.9 x 10.35 mm) |
| Standards and Protocols | IEEE 802.3ae SFF-8472 |
| Digital Diagnostics (DDM/DDMI) | Yes |
