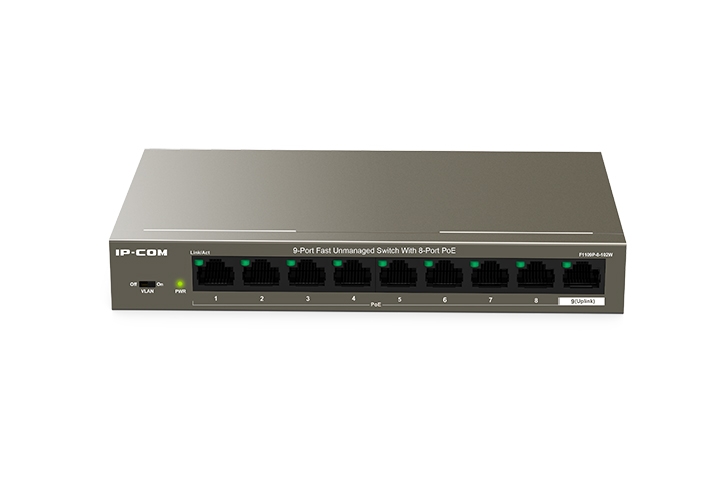

IP-COM (F1109P-8-102W) 9-Port Fast Unmanaged Switch With 8-Port PoE+
$107.00
| SKU: | 393624 |
|---|---|
| MPN: | F1109P-8-102W Link |
| Manufacturer: | https://www.ip-com.com.cn |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
- 1. Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3af/at standards
- 2. 9*10/100Mbps Base-T RJ45 port; Ports 1-8: IEEE 802.3af/at PoE ports
- 3. 2K MAC address and MAC address learning
- 4. IEEE 802.3x full duplex flow control, and backpressure half duplex flow control
- 5. 1.8 Gbps switching fabric for non-blocking line-speed forwarding
- 6. maximum power output of each PoE port: 30 W; maximum power output of the switch: 102W.
- 7. 1Mb packet buffer, twice of that counterparts
- 8. Supports port VLAN; ports 1 to 8 can communicate with the uplink port (port 9) but cannot communicate with each other
- 9. Desktop installation & wall-mount
Specifications
▼
| Interface | 8 10/100M Base-T ports(Data/Power), 1 10/100M Base-T ports(Data) |
| Port Lightning Protection | 6KV |
| Store and forward | Yes |
| Exchange Capacity | 1.8 Gbps |
| Packet forwarding rate | 1.34Mpps |
| MAC Address Table | 2K |
| PoE supply management | Port 1-8 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz DC: 51V 2A |
| Dimensions | 177.5*104*26mm( W x D x H ) |
| Power Consumption | In full configuration: 102W PoE Max Power Supply: 92W |
| Port Features | Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. VLAN:ports 1 to 8 are isolated from each other,but can communicate with ports 9 (uplink port) respectively. |
| Environment Operating | Temperature: 0℃~40℃(32℉~104℉) Storage Temperature: -40℃~70℃(-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
