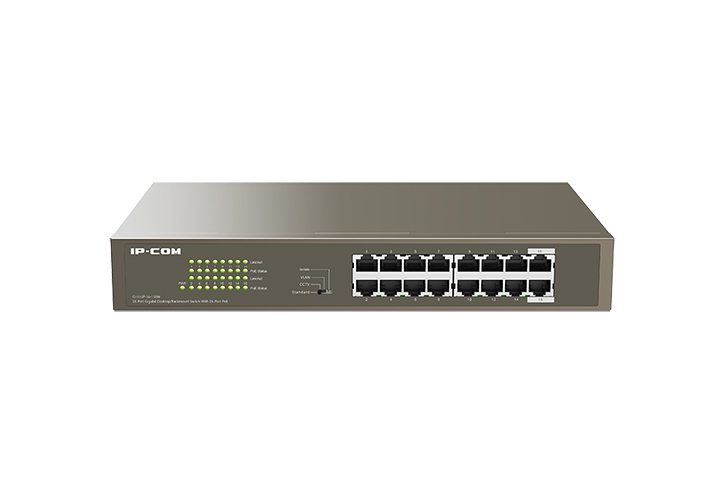

IP-COM ( G1116P-16-150W ) 16-Port Gigabit Desktop/Rackmount Switch With 16-Port PoE
$291.00
SKU: | 388506 |
---|---|
MPN: | G1116P-16-150W Link |
Manufacturer: | https://www.ip-com.com.cn |
Brand: | IP-COM |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
▼
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Store & forward, share memory, non-blocking architecture
Supports MAC address self-learning and auto MDI/MDIX
Provide 16 10/100/1000Mbps auto-negotiation ports with 16-port PoE
Ports 1-16: IEEE 802.3af/at PoE ports
Supports full-deplux 802.3x flow control and half-duplux backpressure flow control
Supports 8K MAC address list, MAC address learning and auto-ageing
Supports port Inductive Lightning Protection up to 6KV
Fanless design
maximum power output of the switch: 135W
Hardware DIP switch for selection among the Standard, CCTV, VLAN, and Isolation modes.
Specifications
▼
Standard&Protocol | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab、IEEE802.3af、IEEE802.3at |
Indicator | 16*Link/Act per device 16*PoE per device 1*Power per device |
Interface | 16 10/100/1000Base-T ports(Data/Power) |
Port | Lightning Protection 6KV |
Store and forward | Yes |
Exchange Capacity | 32 Gbps |
Packet forwarding rate | 23.6Mpps |
MAC Address Table | 8K |
PoE supply management | Port 1-16 support IEEE802.3at/af PoE standard |
PoE through pin | 1 2 4 5 +;3 6 7 8 - |
Voltage input range | AC: 100-240V~50/60Hz |
Dimensions | 294*178*44mm( W x D x H ) |
Power Consumption | in full configuration:<150W PoE Max Power Supply:135W |
Port Features | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. CCTV: the port cache is optimized and PoE ports 1-8 have higher priorities over the other ports. All the ports of the switch can communicate with each other. VLAN: ports 1 to 14 are isolated from each other, but can communicate with ports 15 and 16 (uplink ports) respectively. Isolation:ports 1 to 14 and ports 15 to 24 belong to two different VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other. |
