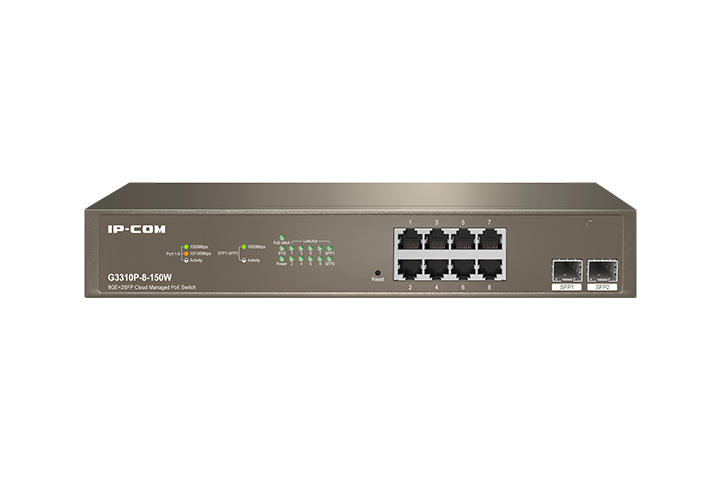

    main product photo

    IP Com (G3310P-8-150W) 8GE + 2SFP Cloud Managed PoE Switch

    $239.00
    SKU:387775
    MPN:G3310P-8-150W Link
    Manufacturer:https://www.ip-com.com.cn
    Brand: IP-COM
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    G3310P-8-150W is a smart cloud management PoE switch designed by IP-COM. It provides 8 gigabit PoE ports and 2 SFP ports, supports IEEE 802.3af/at standards, and can smartly identify powered devices. The maximum output power of a single port is 30W and the power of the whole switch is 150W. It supports IMS Cloud, web UI, and IP-COM IMS app management, making network maintenance more efficient, after-sales cost lower, and management and configuration simpler. It is an ideal choice for video surveillance and wireless networking in such scenarios as small and medium-sized enterprises, hotels, schools, and parks.

    Hardware specifications
    Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at
    LED indicators 1 Link/Ack LED indicator for each port
    1 PoE Max LED indicator for each device
    1 Power LED indicator for each device
    1 SYS LED indicator for each device
    Interfaces 8 x 10/100/1000 Base-T Ethernet ports (Data/Power)
    2 x 100/1000 Base-X SFP ports
    Port Lightning Protection ≥6KV
    Forwarding mode Store-and-forward
    Switching capability 20 Gbps
    Packet forwarding rate 14.9 Mpps
    MAC address table 8K
    PoE Power Supply Ports 1 to 8 support 802.3af/at standard
    1 2 4 5 +, 3 6 7 8 -
    Input voltage 100-240V～ 50/60Hz
    Dimensions(L*W*H) 294 mm * 179.6 mm * 44 mm
    Whole Switch Power Consumption Whole switch power consumption: <150W;
    Maximum PoE output power: 130W
    Operating environment Operating temperature: 0°C - 45℃
    Storage temperature: -40°C - 70°C
    Operating humidity: (10% - 90%)RH, non-condensing
    Storage humidity: (5% - 90%)RH, non-condensing
    Software specifications
    PoE Power Supply Management Port PoE configuration and power supply priority configuration supported
    PoE over-temperature protection supported
    Smart graphical management and PoE-powered device detection supported
    (port status, power assignment, and PoE-powered device status)
    Security Features MAC address binding supported
    VLAN IEEE 802.1Q VLAN supported
    Port aggregation Static aggregation supported
    Dynamic aggregation supported
    Spanning tree IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported
    Port Mirroring N: 1 port mirroring supported
    QoS FIFO (First-In, First-Out) supported
    SP (Strict Priority) supported
    WP (Weighted Priority) supported
    Loading & Upgrade HTTP upgrade supported
    Configuration import and export supported
    Management & Maintenance IP-COM IMS app management supported
    Web UI management supported
    IMS Cloud management supported
    Certificates CCC, FCC, CE, RoHS
