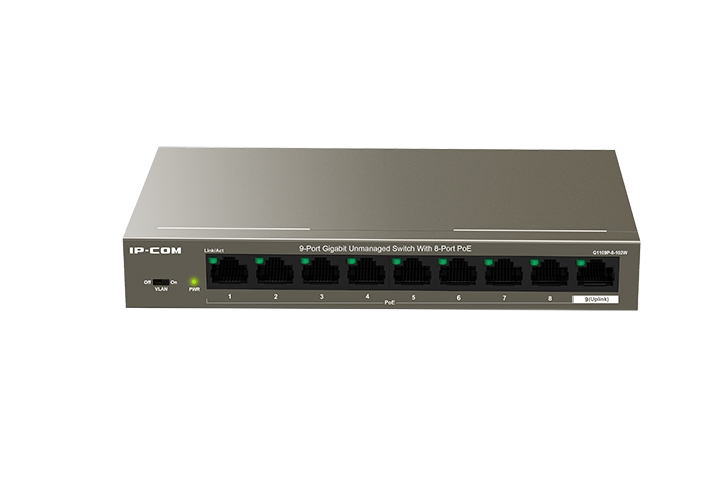

    IP-COM (G1109P-8-102W) 9-Port Gigabit Unmanaged Switch With 8-Port PoE

    $155.00
    SKU:387774
    MPN:G1109P-8-102W Link
    Manufacturer:https://www.ip-com.com.cn
    Brand: IP-COM
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    G1109P-8-102W is a 9-Port Gigabit Desktop Switch With 8-Port PoE developed by Tenda. It provides 8 10/100/1000 BASE-TX RJ45 ports. Ports 1 to 8 support IEEE 802.3af PoE standard with each port providing power of 15.4W, or support IEEE 802.3at PoE+ standard with each port providing power of 30W. The whole switch provides power up to 92W. By using CAT5 twisted pairs, it can provide power and transmit data to APs, IP cameras, IP phones, and so on. In addition, all ports support 6 kV lightning protection, Port based VLAN, making your network deployment more convenient and cost-effective.

    Standard&Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at
    Indicator 9*Link/Act per device
    1*Power per device
    Interface 8 10/100/1000M Base-T ports(Data/Power)
    1 10/100/1000M Base-T ports(Data)
    Port Lightning Protection 6KV
    Store and forward Yes
    Exchange Capacity 18 Gbps
    Packet forwarding rate 13.39 Mpps
    MAC Address Table 16K
    PoE supply management Port 1-8 support IEEE802.3at/af PoE standard
    PoE through pin 1 2 4 5 +;3 6 7 8 -
    Voltage input range AC: 100-240V～50/60Hz
    DC：51V 2A
    Dimensions 177.5*104*26mm ( W x D x H )
    Power Consumption In full configuration: 102W
    PoE Max Power Supply: 92W
    Port Features Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
    VLAN:ports 1 to 8 are isolated from each other,but can communicate with ports 9 (uplink port) respectively.
    Environment Operating Temperature: 0℃~40℃(32℉~104℉)
    Storage Temperature: -40℃~70℃(-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
