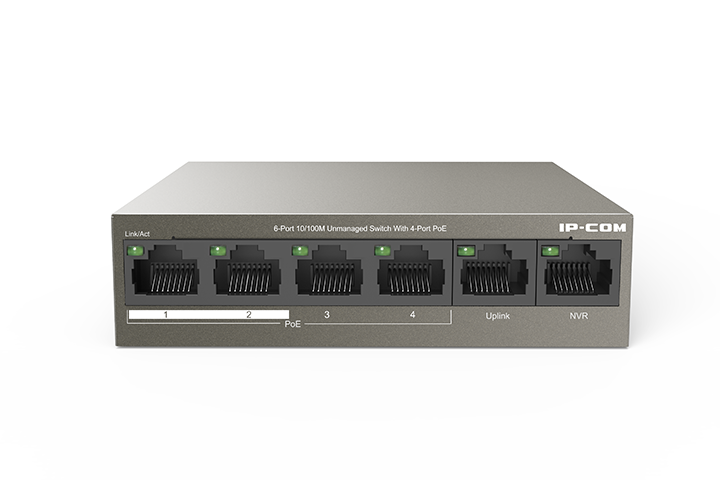

    IP-COM (F1106P-4-63W) 6-Ports 10/100Mbps Desktop PoE+ Switch with 4-PoE ports

    $51.00
    SKU:382876
    MPN:F1106P-4-63W Link
    Manufacturer:https://www.ip-com.com.cn
    Brand: IP-COM
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    • Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
    • 4 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
    • 2 * 10/100 Mbps Base-TX RJ45 ports for data transmission
    • 1 K MAC address table and MAC address auto-learning
    • IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
    • 1.2 Gbps backplane bandwidth
    • Maximum power consumption of a single port:30W
    • Maximum power consumption of the switch: 58W
    • Supports extend mode and QoS function
    • Supports desktop and wall-mounting, plug and play
    Product model F1106P-4-63W
    Hardware features
    Standard&Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
    Indicator 6 * Link/Ack LED indicators
    1 * Power LED indicator
    Interface 4 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
    2 * 10/100 Mbps Base-TX RJ45 ports (Data)
    Port Lightning Protection 6KV for uplink port
    Store and forward Yes
    Exchange Capacity 1.2 Gbps
    Packet forwarding rate 1.34Mpps
    MAC Address Table 1K
    PoE supply management Port 1-4 support IEEE802.3at/af PoE standard
    PoE through pin 1 2 4 5 +;3 6 7 8 -
    Voltage input range AC: 100-240V～50/60Hz DC: 51V 1.25A
    Dimensions ( W x D x H ) 100*100*26mm
    Power Consumption In full configuration: 63W
    PoE Max Power Supply: 58W
    Port Features Standard:the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
    Extend:ports 1 to 4 are isolated from each other,but can communicate with ports 6 (uplink port) respectively.
    Environment Operating Temperature: 0℃~40℃(32℉~104℉)
    Storage Temperature: -40℃~70℃(-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
