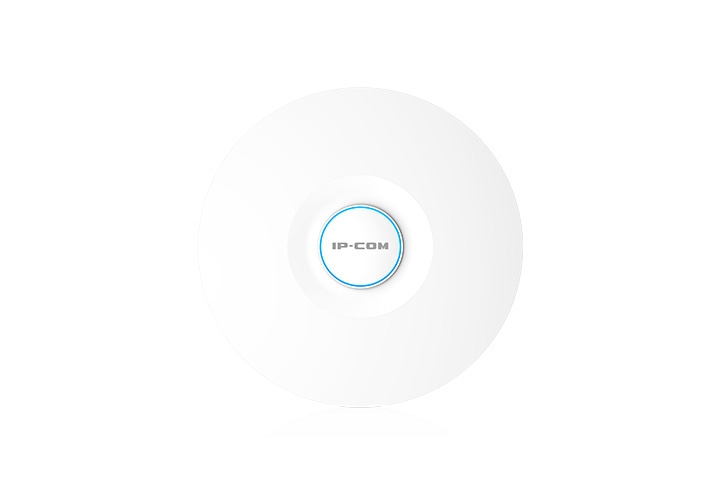

IP-COM (Pro-6-LR) 802.11AX Dual-Band Long Range Access Point
| SKU: | 382875 |
|---|---|
| MPN: | Pro-6-LR Link |
| Manufacturer: | https://www.ip-com.com.cn |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Pro-6-LR is designed based on the new Wi-Fi 6 technology. It realizes a bandwidth of 160 MHz and a 5 GHz rate as high as 2.4 Gbps, a rate three times higher than that of ordinary Wi-Fi 5 APs and two times that of ordinary Wi-Fi 6 APs. The application of such new technologies as OFDMA, spatial multiplexing, and MU-MIMO drives the network capacity of a single Pro-6-LR to 4 times higher. The high-power RF design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance Wi-Fi 6 mode. Pro-6-LR is a perfect choice for such locations as businesses and hotels to deploy high-performance Wi-Fi networks. ProFi Controller makes it easy to manage and monitor the whole ProFi series in a real-time manner and cloud services enable a remote and secure access free from the restrictions of device location.
Specifications
| Product Information | |
|---|---|
| Model | Pro 6 LR |
| Category | Ceiling |
| Dimensions | Φ250.6*55 mm |
| Hardware Specifications | |
| Frequency band | 2.4 GHz, 5 GHz |
| Wireless standards | IEEE 802.11a/b/g/n/ac/ax |
| 2.4 GHz data rate | 1-574 Mbps |
| 5 GHz data rate | 6-2402 Mbps |
| Channel width | 20 MHz/40 MHz/80 MHz/160 MHz |
| MU-MIMO | 2X2 MU-MIMO |
| Ethernet port | One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED indicator | RGB |
| Max. power consumption | 15.74 W |
| Power supply standard | IEEE 802.3at PoE |
| Concurrent clients | 254 |
| Antenna gain | 4*4 dBi |
| 2.4 GHz Max. output power | 29+/-1.5 dBm |
| 5 GHz Max. output power | 29+/-1.5 dBm |
| 802.11b RX sensitivity | -97 dBm |
| 2.4 GHz 802.11n (MCS7) RX sensitivity | -75 dBm |
| 5 GHz 802.11a RX sensitivity | -95 dBm |
| 5 GHz 802.11n (MCS7) RX sensitivity | -75 dBm |
| Software Specifications | |
| Operating mode | AP |
| Hide SSID | Supported |
| Max. No. of SSID | 2.4 GHz: 7 5 GHz: 4 |
| OFDMA | Supported |
| Beamforming | Supported |
| TWT | Supported |
| 802.11 k/v | Supported |
| WEP | Supported |
| WPA-PSK | AES/TKIP |
| WPA2-PSK | AES/TKIP |
| WPA3-ASE | AES |
| WPA | Supported |
| WPA2 | Supported |
| Access control | MAC address-based |
| Adjustable power transmit | Supported |
| Frequency analysis | Supported |
| AP isolation | Supported |
| Connected clients control | Supported |
| RSSI threshold | Supported |
| VLAN tagging for SSID | Supported |
| LED indicator control | Supported |
| Diagnostics tool | Ping, Traceroute |
| Scheduled reboot | Supported |
| Reboot at specified interval | Supported |
| System logs | Supported |
| Firmware upgrade | Supported |
| Reboot | Supported |
| Reset | Supported |
| Backup configuration | Supported |
| Restore configuration | Supported |
| Operating Environment | |
| Default login IP address | 192.168.0.254 |
| Default user name | admin |
| Default password | admin |
| Operating temperature | -10℃ - 45℃ |
| Operating humidity | (10% - 90%) RH, non-condensing |
| Storage temperature | -30℃ - 70℃ |
| Storage humidity | (10% - 90%) RH, non-condensing |
