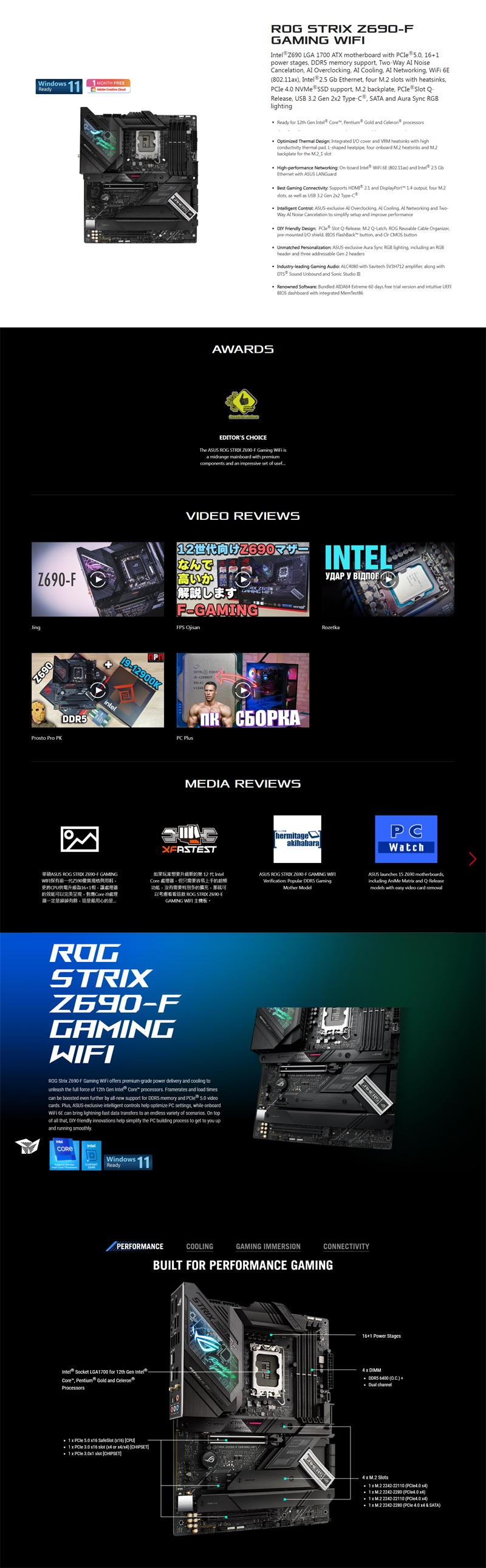

ASUS ROG STRIX Z690-F GAMING WIFI Intel LGA 1700 ATX Motherboard DDR5, PCIe 5.0, 4xM.2, 16+1 Power Stages, WiFI 6E, 2.5 Gb Ethernet, USB-C. RGB

Special Price $695.00 Regular Price $799.00
SKU:377272
MPN:ROG STRIX Z690-F GAMING WIFI Link
Manufacturer:https://rog.asus.com
Brand: Asus
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

ROG STRIX Z690-F GAMING WIFI



CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Z690

Memory

4 x DIMM, Max. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

1 x DisplayPort**

 1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 8K@60Hz as specified in DisplayPort 1.4

*** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots



Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot

- Intel® 12th support PCIe 5.0 x16 mode

Intel® Z690 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)

1 x PCIe 3.0 x1 slot

* Please check PCIe bifurcation table in support site.



Storage

Intel®12th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***

6 x SATA 6Gb/s ports****

* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

*** When M.2_4 is operating in SATA device, SATA6G_2 will be disabled.

**** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.

Ethernet

1 x Intel® 2.5Gb Ethernet

Wireless & Bluetooth

Intel® Wi-Fi 6E

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2 hardware ready**

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

** Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

Rear USB:Total 10 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- SupremeFX Shielding Technology

- ALC4080 + Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover
