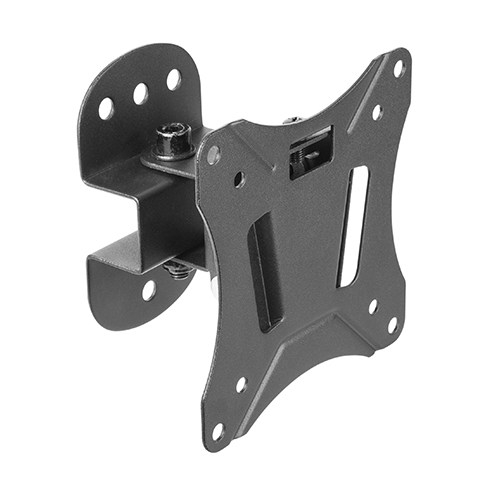

Brateck LCD Economy Pivot TV Wall Mount Bracket VESA 75 x75mm/100 x100mm 13'-27' LCD Panel Up to 25kg KMA21-110
SKU: | 374930 |
---|---|
MPN: | KMA21-110 Link |
Manufacturer: | https://brateck.com.au/ |
Brand: | Brateck |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
The new model KMA21-110 is an ideal solution for most 13"-27" flat panel TVs up
to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you
to adjust the TV angle to get the optimum viewing angle: whether it's avoiding
glare or positioning it towards the sofa for the perfect view, from anywhere in
the room. VESA compatible with 75x75, 100x100.
FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the
best seat)
●Easy Assembly: Installation is as easy as 1-2-3
Specifications
Product Category: Pivot TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm
cold-rolled sheet (Wall Plate THK=0.079" cold-rolled sheet,VESA Panel THK=0.059"
cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 115x115x76mm (4.5"x4.5"x3")
Fit Screen Size: 13"-27"
Fit Curved TV: No
Mounting Hole Pattern : VESA Only
VESA Compatible: 75x75,100x100
Max. VESA: 100x100
Weight Capacity: 25kg (55lbs)
Strength Tested: 2 Times Approved
Profile: 76mm (3")
Tilt Range: +7.5°~-7.5°
Swivel Range: +25°~-25°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Compartment Polybag
