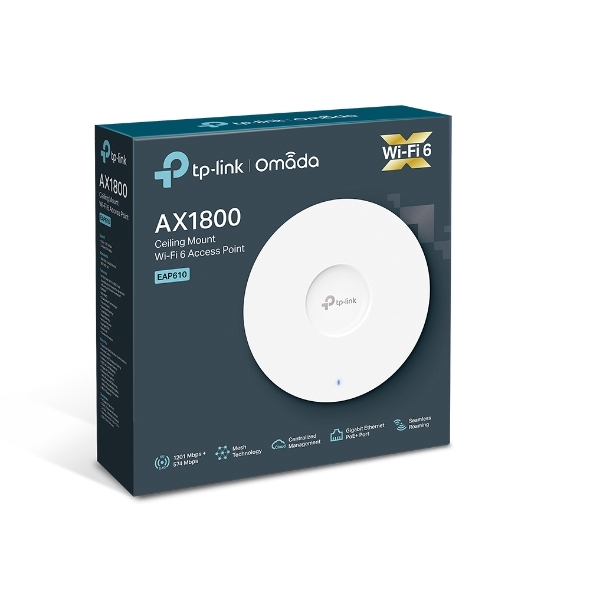

TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point, WiFi 6, 1201 Mbps 5GHz, OMADA, Centralised Cloud, PoE+ Powered
| SKU: | 373316 |
|---|---|
| MPN: | EAP610 |
| Manufacturer: | https://www.tp-link.com/ |
| Brand: | Tp-link |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
TP-Link EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5
GHz totals 1775 Mbps Wi-Fi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralised Cloud Management: Manage the whole network locally or from the
cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users
move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended
range and flexible deployment.§
• PoE+ Powered: Supports both Powers over Ethernet (802.3at) and DC power supply
for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook
Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Specifications
HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V / 1 A DC
Power Consumption • EU: 12.8 W (For PoE); 10.8 W (for DC)
• US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate 5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
