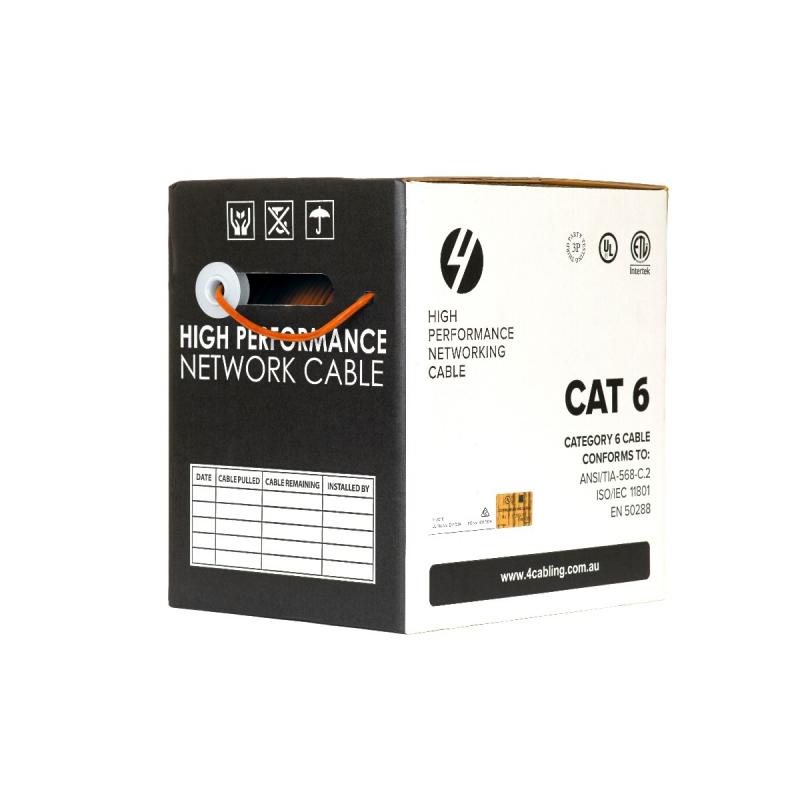

CAT6 Ethernet 305m Cable Reel Box. UTP LAN Cable with Solid Conductor. Orange SLD.C6UTP.ORANGE.R
| SKU: | 366503 |
|---|---|
| MPN: | SLD.C6UTP.ORANGE.R Link |
| Manufacturer: | https://www.4cabling.com.au |
| Brand: | 4cabling |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
DETAILS
CAT6 ETHERNET 305M CABLE REEL BOX. UTP LAN CABLE WITH SOLID CONDUCTOR. ORANGE
Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today’s applications.
Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.
Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 550 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).
Applications:
- Gigabit Ethernet, Multimedia, video, voice & data
- Horizontal wiring in Local Area Networks (LAN)
- 550MHz Broadband Video
CABLE SPECIFICATIONS
- Cable Type: Cat 6
- Connectors: Unterminated
- Length: 305m (1000ft)
- Colour: Orange
- Jacket Material: PVC
- Diameter: 6.2mm
FEATURES
- Unterminated Cat 6 in Reel Box
- PVC Outer Jacket
- Metre Marked
- 305m Reel Box
- 23 AWG
CERTIFICATIONS
- UL listed
- EIA/TIA and RCM approved
- ANSI/TIA/EIA 568-B.2-1 CAT.6
- ISO/IEC 11801 CLASS E, 2nd Edition
- IEC 61156-6
- CENELEC EN 50173-1 CENELEC EN 50288-5-1
- CENELEC EN 50288-5-2
- Flame Retardancy is verified according to IEC 60332-1-2
- RoHS compliance the European Union issued Directive 2002/95/EC
Specifications
All Proposed Category 6 requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA/EIA 568-B.2-1 CAT.6
ISO/IEC 11801 CLASS E, 2nd Edition IEC 61156-6
CENELEC EN 50173-1 CENELEC EN 50288-5-1,CENELEC EN 50288-5-2
Flame Retardancy is verified according to IEC 60332-1-2.
We implemented RoHS compliance for the requirement of European Union issued Directive 2002/95/EC.
CONSTRUCTION & CHARACTERISTICS
| Conductor | Material/Size | Bare Copper/23 AWG |
| Insulation | Material | HDPE |
| Thickness | Normal Avg.: 0.22 mm | |
| Diameter | Normal: 1.00 mm | |
| Colours | Blue/White-Blue Orange/White-Orange | |
| Green/White-Green Brown/White-Brown | ||
| Elongation | Min. 300% | |
| Tensile Strength | Min. 1.682 Kg/mm2 | |
| Sheath | Material | PVC |
| Thickness | Average: 0.50 mm | |
| Diameter | 6.3 ± 0.3 mm | |
| Colour | Assorted upon request | |
| Elongation | Min. 100% | |
| Tensile Strength | Min. 1.407 Kg/mm2 | |
| Aging at 100°C for 168Hrs | Min. elongation retention:50% Min. tensile strength retention:75% |
|
| Marking | CAT.6 UTP ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2-1 ELT/3P VERIFIED - 23AWGX4P SOLID TYPE CM (UL) c(UL) E164469XXXXXXM |
|
| or as customer request. | ||
| Flame Test | Burning five times, every time is less than 60 seconds and paper flag can't be burned. |
|
