HARDWARE FEATURES
Interface	2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	12.3 W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type	Internal Omni 2.4GHz: 3* 3.5dBi 5GHz: 3*4dBi
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz:Up to 1300Mbps 2.4GHz:Up to 450Mbps
Wireless Functions	Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power	CE： ≤20dBm(2.4GHz) ≤23dBm(5GHz) FCC: ≤24dBm(2.4GHz) ≤24dBm(5GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	Omada Software Controller OC200
Cloud Access	Yes (Through Omada Software Controller or OC200)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245 Gigabit Passive PoE Adapter Power Cord Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	Limited 5-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

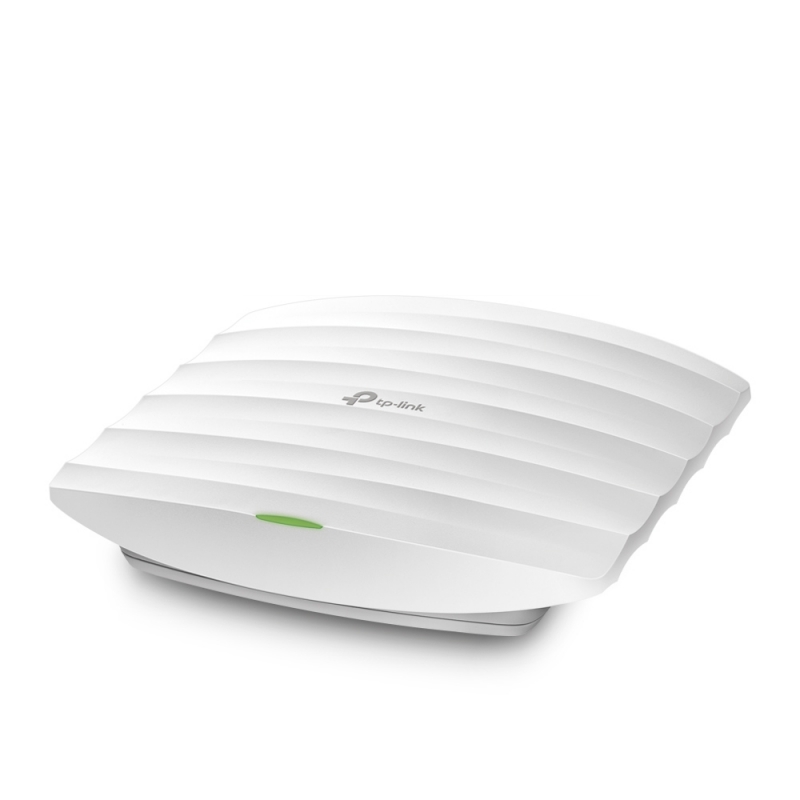

TP-Link EAP245 |AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point Highlights: Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.† Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring. Centralised Management: Cloud access and Omada app for ultra convenience and easy management. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§ PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies. What is Omada Cloud SDN?      Omada Installation and Configuration Guide †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition. ‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. §Seamless Roaming requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device. WHY 4CABLING? 100% Aussie owned and operated. Expert advice and sales team. Trusted by over 100,000 Aussie customers ISO 9001, NSW & QLD government approved supplier Massive stock levels, ready to go Lightning fast delivery nationwide Warranty & easy return policy Secure online shopping 24/7
