HARDWARE FEATURES
Interface	• 16× PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption	• 12.71 W (220/50Hz. no PD connected) • 172.8 W (220/50Hz. with 150 W PD connected)
Max Heat Dissipation	• 43.34 BTU/h (no PD connected) • 589.25 BTU/h (with 150 W PD connected)

PERFORMANCE
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Address Table	8K
Jumbo Frame	10 KB

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SL1218P • Power Cable • Installation Guide • Two mounting brackets and the fittings
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

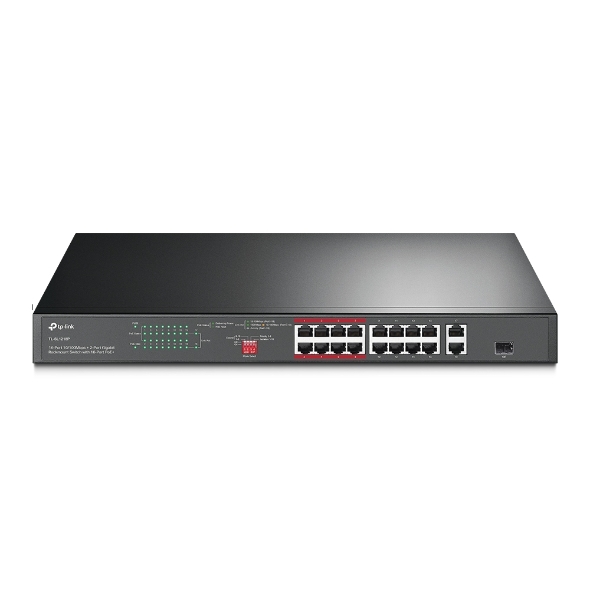

TP-Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
