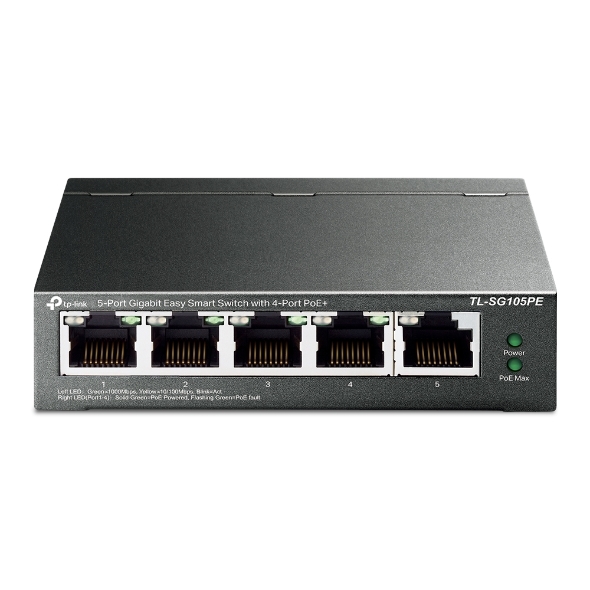

    TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For All POE Ports, Up To 30W Each Port

    Special Price $89.00 Regular Price $102.00
    SKU:305810
    MPN:TL-SG105PE Link
    Manufacturer:https://www.tp-link.com/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
    IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
    Interface Five 10/100/1000Mbps RJ45 Ports
    AUTO Negotiation/AUTO MDI/MDIX

    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)

    Fan Quantity Fanless
    Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
    PoE Ports (RJ45) Standard: 802.3 af/at compliant
    PoE Ports: Port 1- Port 4
    PoE Power Budget: 65 W

    Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
    Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
    75.16 W (220V/50Hz with 65 W PD connected)
    Max Heat Dissipation 15.41 BTU/h (with no PD connected)
    256.30 BTU/h (with 65 W PD connected)
    PERFORMANCE
    Switching Capacity 10 Gbps
    Packet Forwarding Rate 7.44 Mpps
    MAC Address Table 2 K
    Packet Buffer Memory 1.5 Mb
    Jumbo Frame 16 KB
    SOFTWARE FEATURES
    Quality of Service Support Port-Based/802.1p/DSCP priority
    Support 4 priority queues
    Rate Limit
    Storm Control

    L2 Features IGMP Snooping V1/V2/V3
    Static Link Aggregation
    Port Mirroring
    Cable Diagnostics
    Loop Prevention
    PoE Auto Recovery
    Extend Mode
    VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
    MTU/Port/Tag VLAN

    Management Web-based GUI
    Easy Smart Configuration Utility

    Transmission Method Store-And-Forward
    OTHERS
    Certification FCC, CE, RoHS
    Package Contents TL-SG105PE
    Power Adapter
    Installation Guide
    Rubber Feet

    System Requirements Microsoft® Windows® for running Utility
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90%RH non-condensing
    Storage Humidity: 5%~95%RH non-condensing
    TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For All POE Ports, Up To 30W Each Port
