HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface	5× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 12 VDC / 1 A)
LED Indicator	• System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
Dimensions ( W x D x H )	8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption	12.11 W
Max Heat Dissipation	41.32 BTU/h

PERFORMANCE
Switching Capacity	25 Gbps
Packet Forwarding Rate	18.6 Mpps
MAC Address Table	16 K
Packet Buffer Memory	1.5 Mb
Jumbo Frame	10 KB

SOFTWARE FEATURES
Advanced Features	• 802.3X Flow Control • 802.1p/DSCP QoS
Transfer Method	Store and Forward

OTHERS
Certification	CE, FCC ,RoHS
Package Contents	• 5-Port 2.5G Multi-Gigabit Desktop Switch TL-SG105-M2 • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

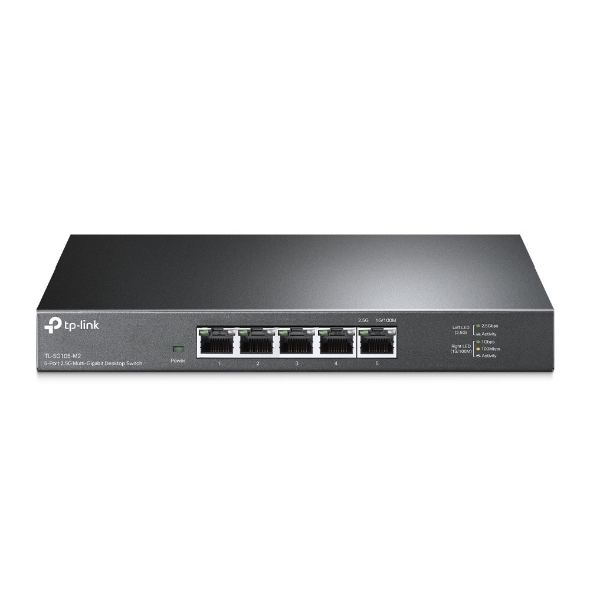

TP-Link TL-SG105-M2 5-Port 2.5G Desktop Switch, Up To 25Gbps of Switching Capacity, 2.5G WiFi 6 AP, 4K Video, Wall-Mountable, Plug and Play, Fanless
