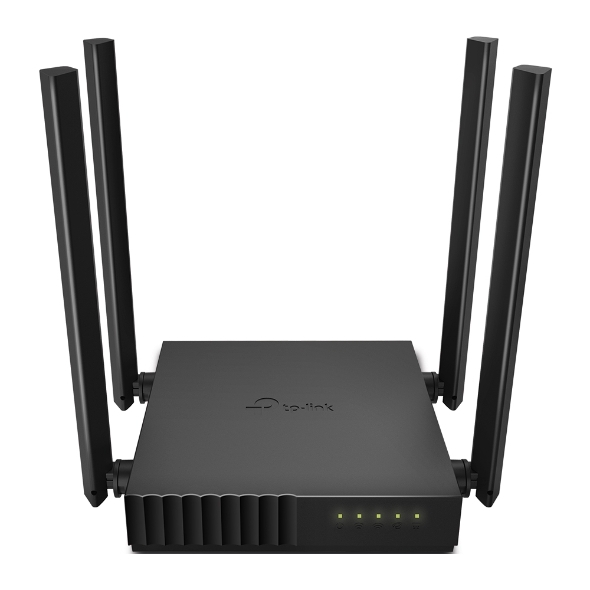

    main product photo

    TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 867Mbps 4xLAN 1xWAN 4xAntennas,

    WPS, Router Access Point and Range Extender Modes
    $65.00
    SKU:305801
    MPN:Archer C54 Link
    Manufacturer:https://www.tp-link.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    WIRELESS
    Standards Wi-Fi 5
    IEEE 802.11ac/n/a 5 GHz
    IEEE 802.11n/b/g 2.4 GHz
    WiFi Speeds AC1200
    5 GHz: 867 Mbps (802.11ac)
    2.4 GHz: 300 Mbps (802.11n)
    WiFi Range 3 Bedroom Houses
    4× Fixed Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas

    Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
    WiFi Capacity Medium
    Dual-Band
    Allocate devices to different bands for optimal performance

    MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients
    Working Modes Router Mode
    Access Point Mode
    Range Extender Mode
    HARDWARE
    Processor Single-Core CPU
    Ethernet Ports 1× 10/100 Mbps WAN Port
    4× 10/100 Mbps LAN Ports
    Buttons WPS/Reset Button
    Power 9 V ⎓ 0.85 A
    SECURITY
    WiFi Encryption WEP
    WPA
    WPA2
    WPA/WPA2-Enterprise (802.1x)
    Network Security SPI Firewall
    Access Control
    IP & MAC Binding
    Application Layer Gateway
    Guest Network 1× 5 GHz Guest Network
    1× 2.4 GHz Guest Network
    SOFTWARE
    Protocols IPv4
    IPv6
    Parental Controls URL Filtering
    Time Controls
    WAN Types Dynamic IP
    Static IP
    PPPoE
    PPTP
    L2TP
    Quality of Service QoS by Device
    NAT Forwarding Port Forwarding
    Port Triggering
    DMZ
    UPnP
    IPTV IGMP Proxy
    IGMP Snooping
    Bridge
    Tag VLAN
    DHCP Address Reservation
    DHCP Client List
    Server
    DDNS NO-IP
    DynDNS
    Management Tether App
    Webpage
    Check Web Emulator>
    PHYSICAL
    Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in
    (115 × 106.7 × 24.3 mm)
    Package Contents Wi-Fi Router Archer C54
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
    OTHER
    System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

    Cable or DSL Modem (if needed)

    Subscription with an internet service provider (for internet access)
    Certifications FCC, CE, RoHS
    Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    TEST DATA
    WiFi Transmission Power CE EIRP:
    <20dBm(2.4GHz)
    <23dBm(5GHz)
    FCC:
    <30dBm(2.4GHz & 5GHz)
    WiFi Reception Sensitivity 5GHz:
    11a 6Mbps:-93dBm；
    11a 54Mbps:-78dBm；
    11ac HT20 mcs8:69dBm;
    11ac HT40 mcs9:-66dBm;
    11ac HT80 mcs9:-62dBm;
    2.4GHz:
    11g 54Mbps:-78dBm;
    11n HT20 mcs7:-74dBm;
    11n HT40 mcs7:-71dbm；
